Table Saw

TC-TS 2025/1 U; EX; BR; 127V

Item no.: 4340549 EAN: 4006825629293

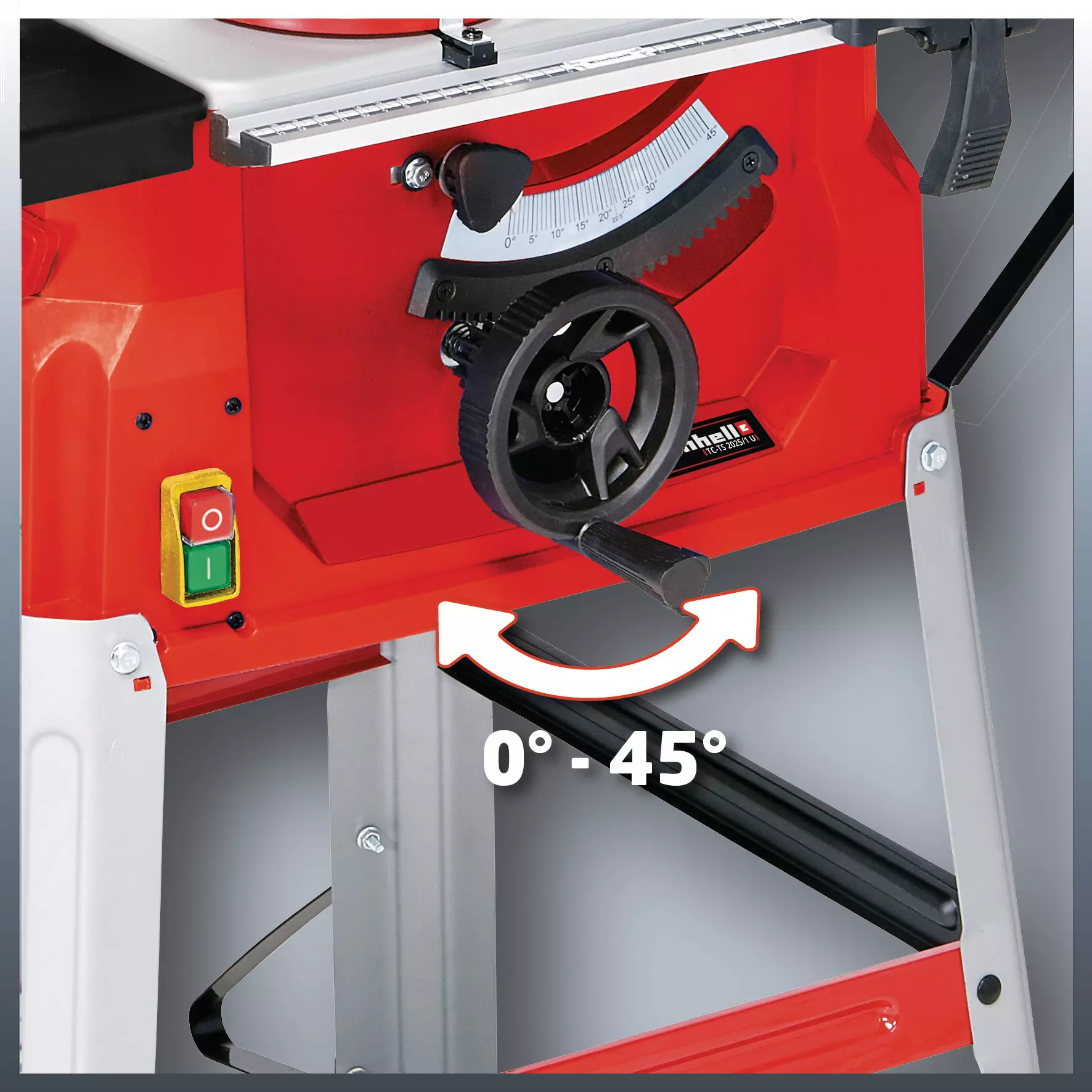

  • 2 in 1 saw blade adjustment (height, angle 0°-45°)

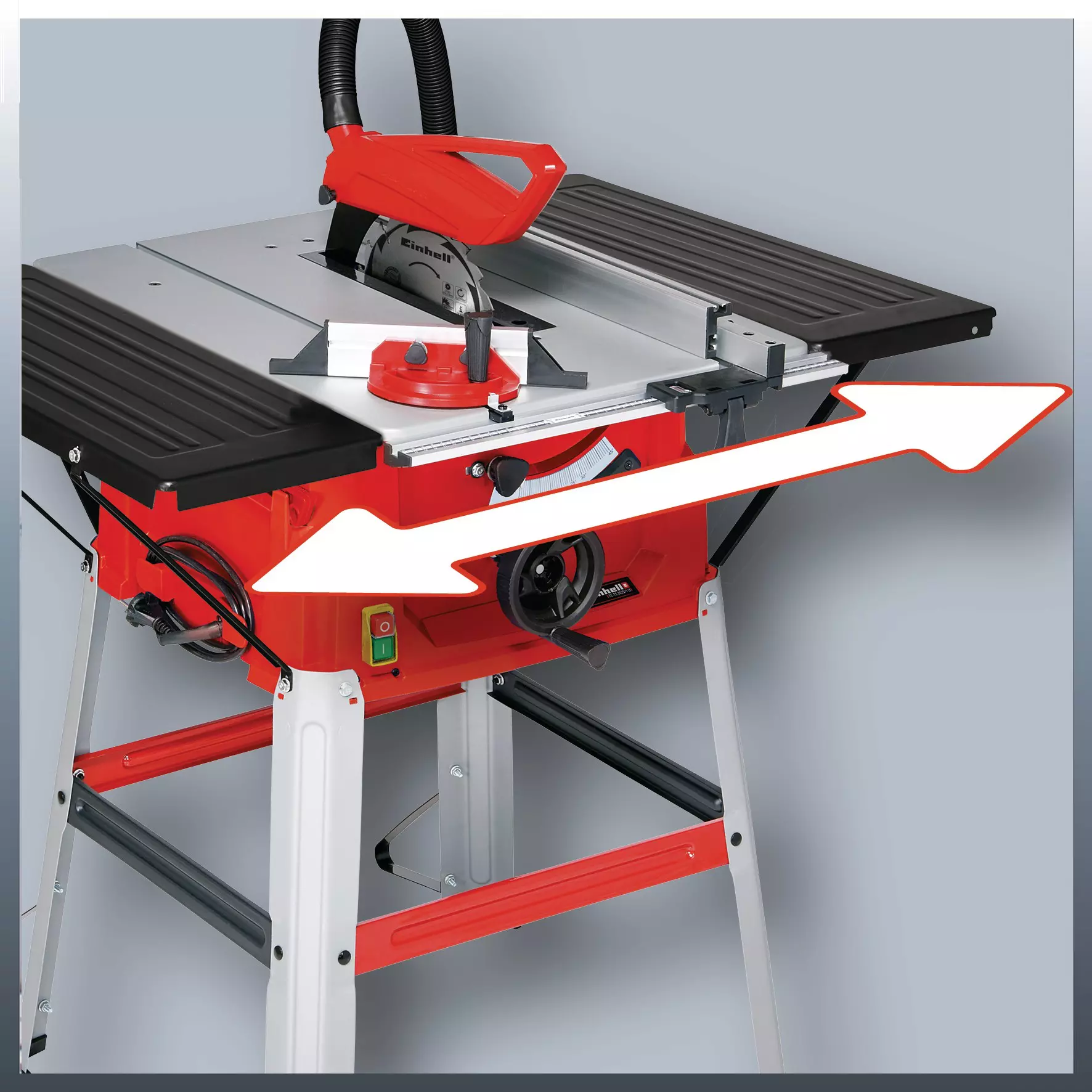

  • Table width extension for wide workpieces
  • Saw blade guard with chip extractor connection

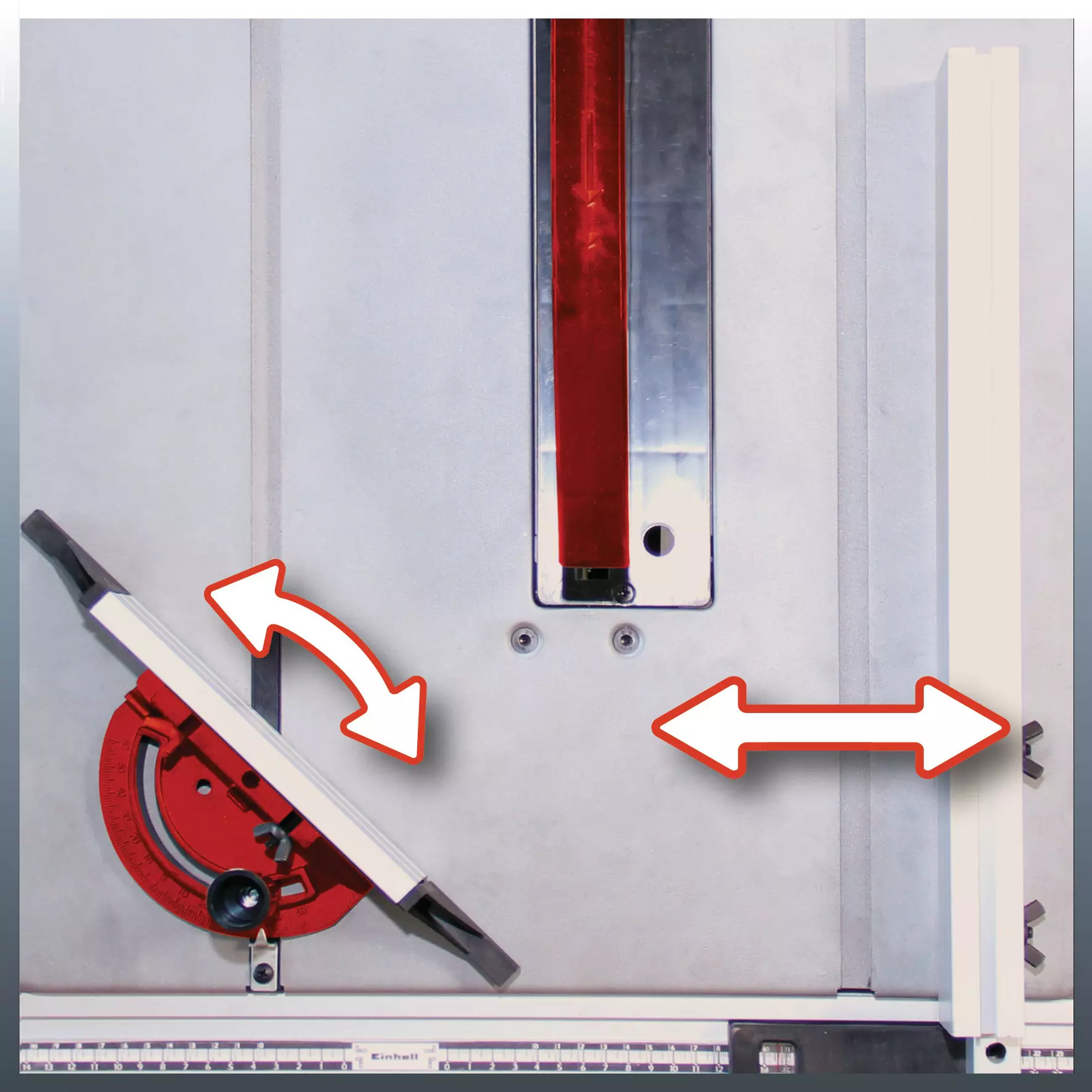

  • Parallel stop with eccentric clamp
  • Cross stop with angle scale (+/- 60°)

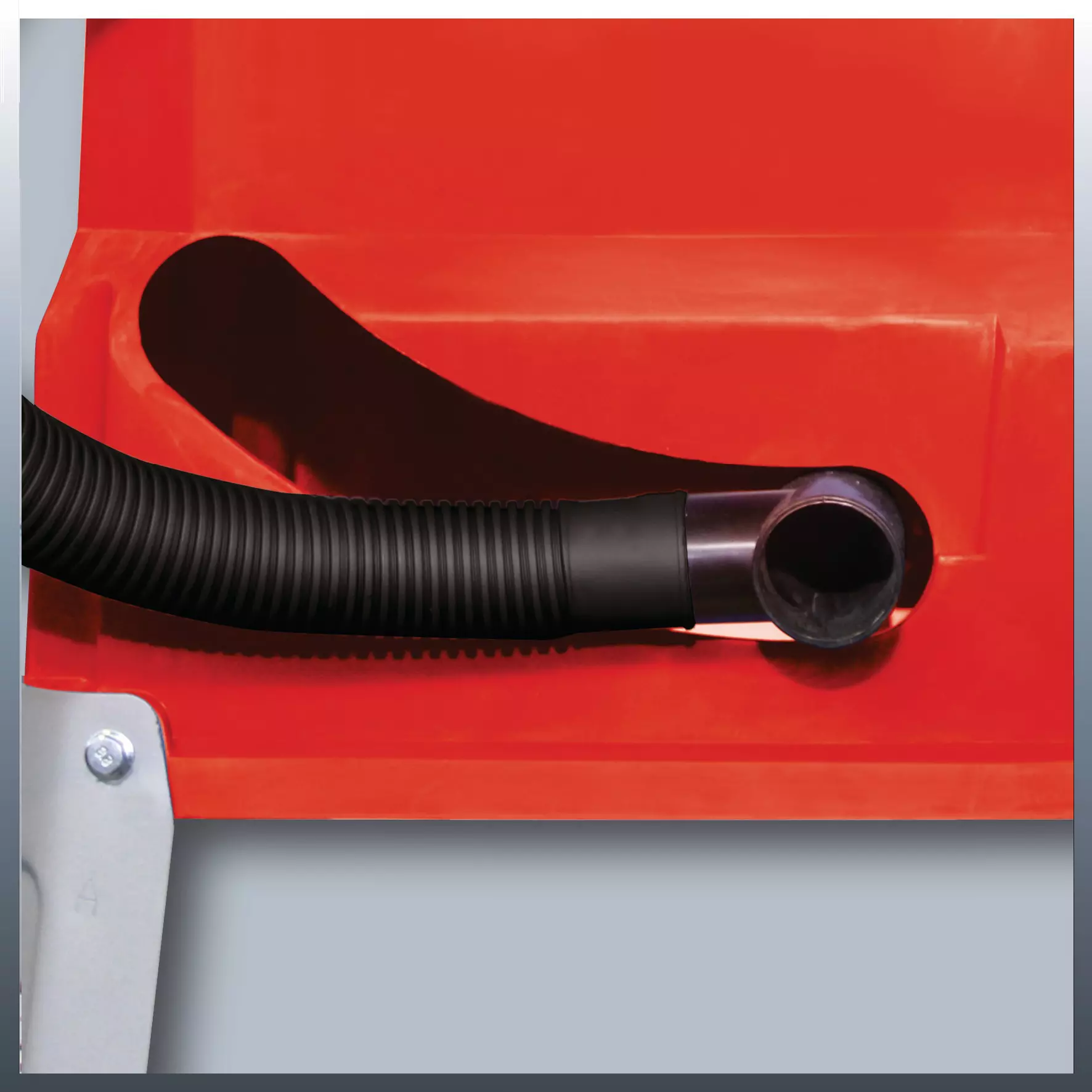

  • Housing with chip extractor connection for a clean workplace
  • Includes base frame for stability

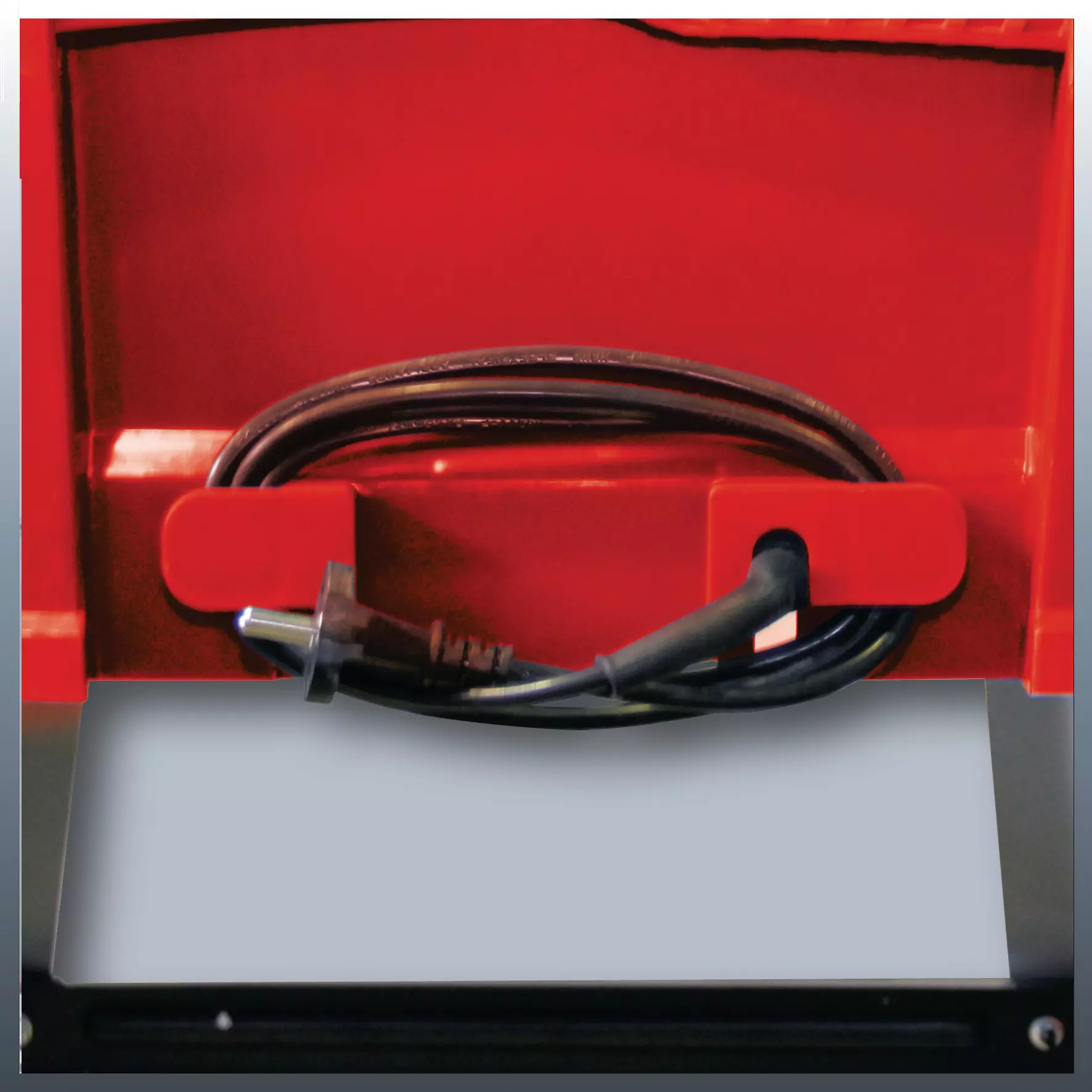

  • Holder to wrap the power cord
  • Holder for included tools

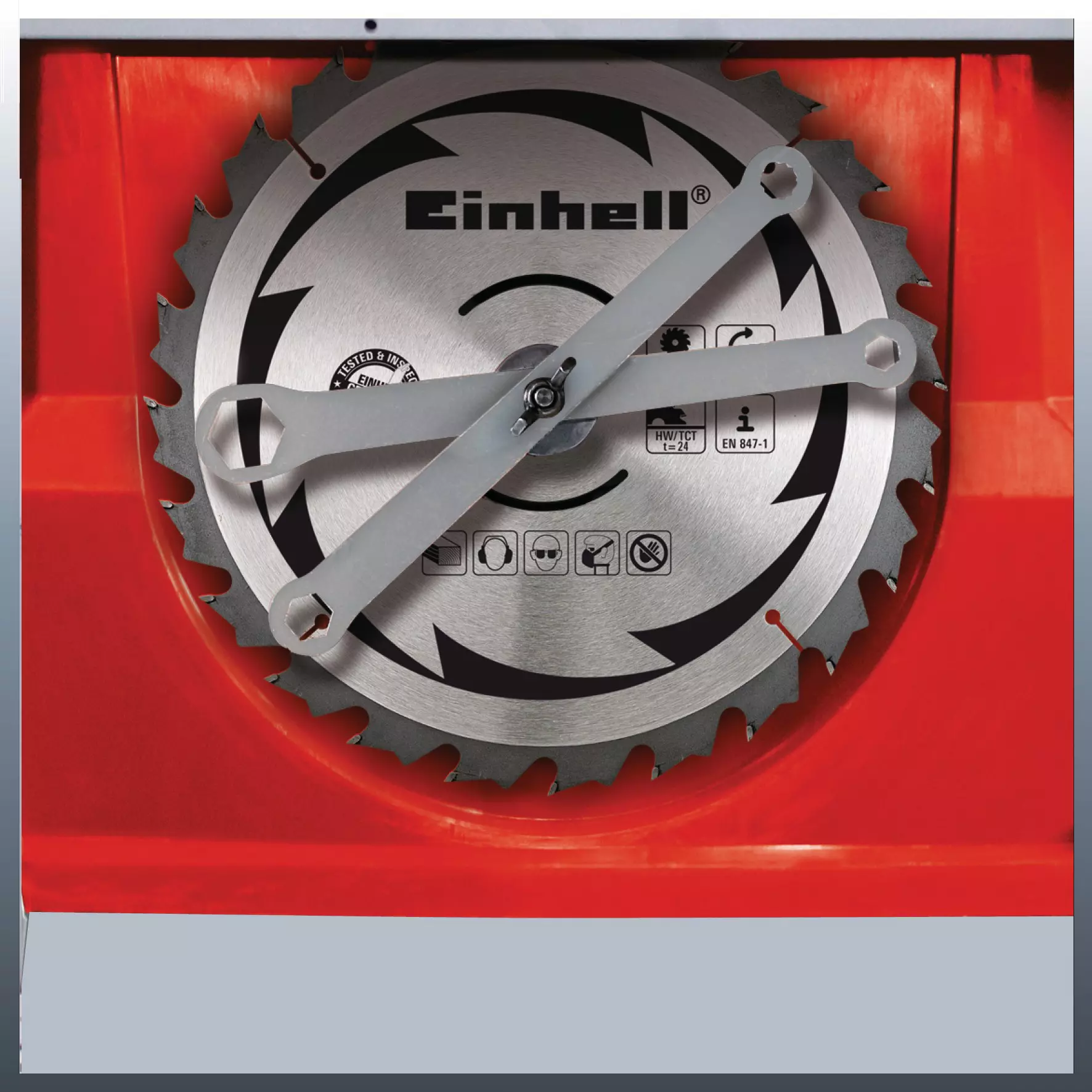

  • Precision saw blade with carbide-coated teeth
  • Push stick holder
See more information
einhell-classic-table-saw-4340549-productimage-101
Article description

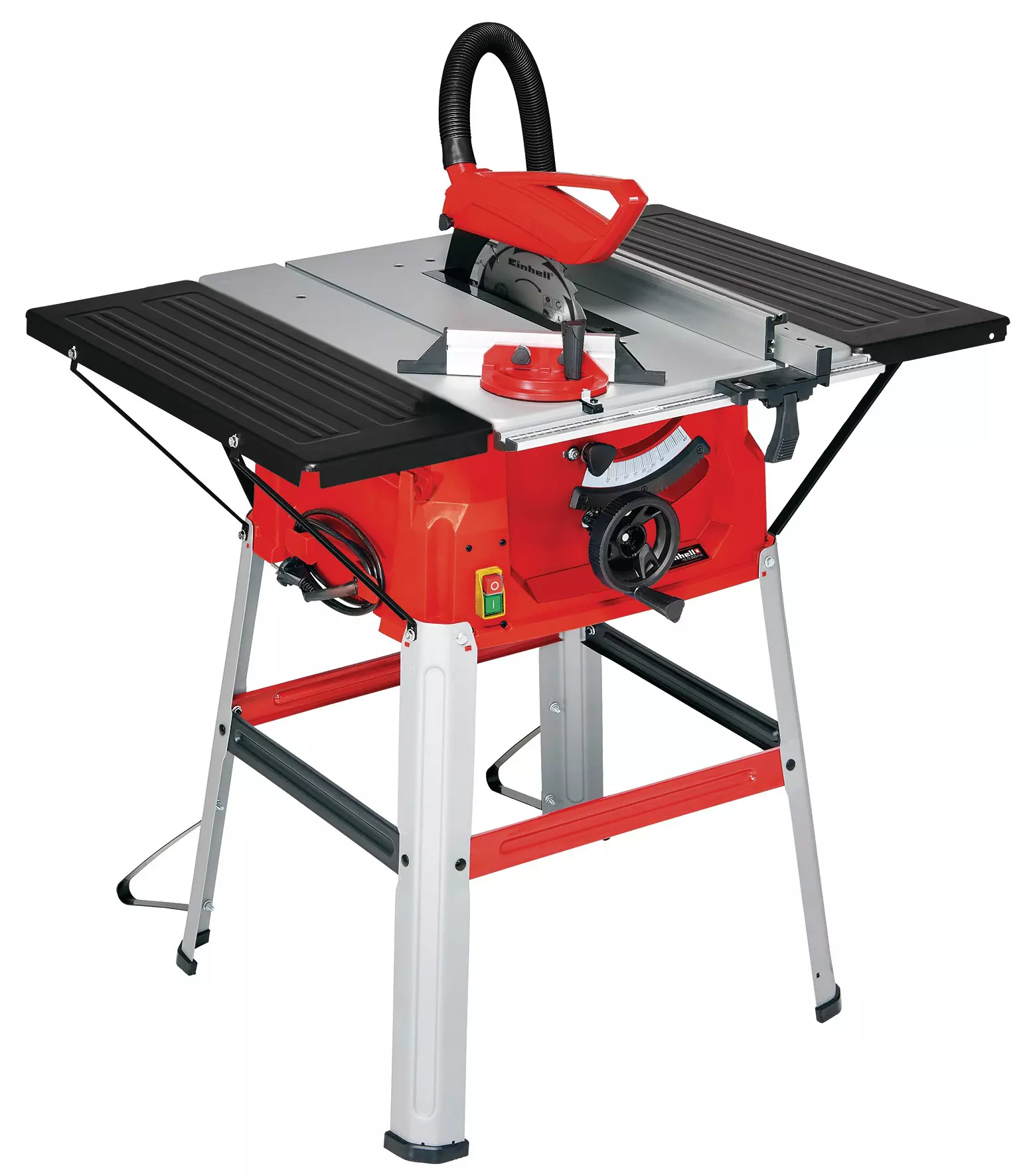

The TC-TS 2025/1 U bench-type circular saw is a powerful device with which ambitious DIY enthusiasts can make exact longitudinal cuts and angle cuts in solid wood, fiberboard and many other materials. It is supplied with a precision saw blade with carbide-tipped teeth, the height and angle of which can be adjusted individually using the 2in1 saw blade adjustment. The powder-coated table width extension and the length stop rail allow particularly workpieces to be sawn without any problem. The anodized table surface of the TC-TS 2025/1 U bench-type circular saw offers outstanding sliding properties, enabling a uniform feed for precise, fluid sawing. The cross stop allows precise angle cuts to be achieved. The saw blade guard and the housing of the machine also are provided with a chip extractor connection to ensure a clean workplace. An overload switch ensures safety when working. The push stick that is also is required for safety reasons has its own holder, where it is always within reaching distance. The sturdy base frame for stability is already included in the scope of supply.

Technical details

Mains supply127 V | 60 Hz
Power1800 W
Max. power (S6 | S6%)2000 W | 25 %
Idle speed5000 min^-1
Saw blade250 mm x 30 mm
Number of saw teeth24 Pieces
Swiveling range of saw blade45 °
Max. cutting height at 45°65 mm
Max. cutting height at 90°85 mm
Height adjustment continuous0-85 mm
Diameter of suction adapter36 mm
Working height850 mm
Size of working table640 mm x 487 mm
Table broadening left640 mm x 200 mm
Table broadening right640 mm x 200 mm
