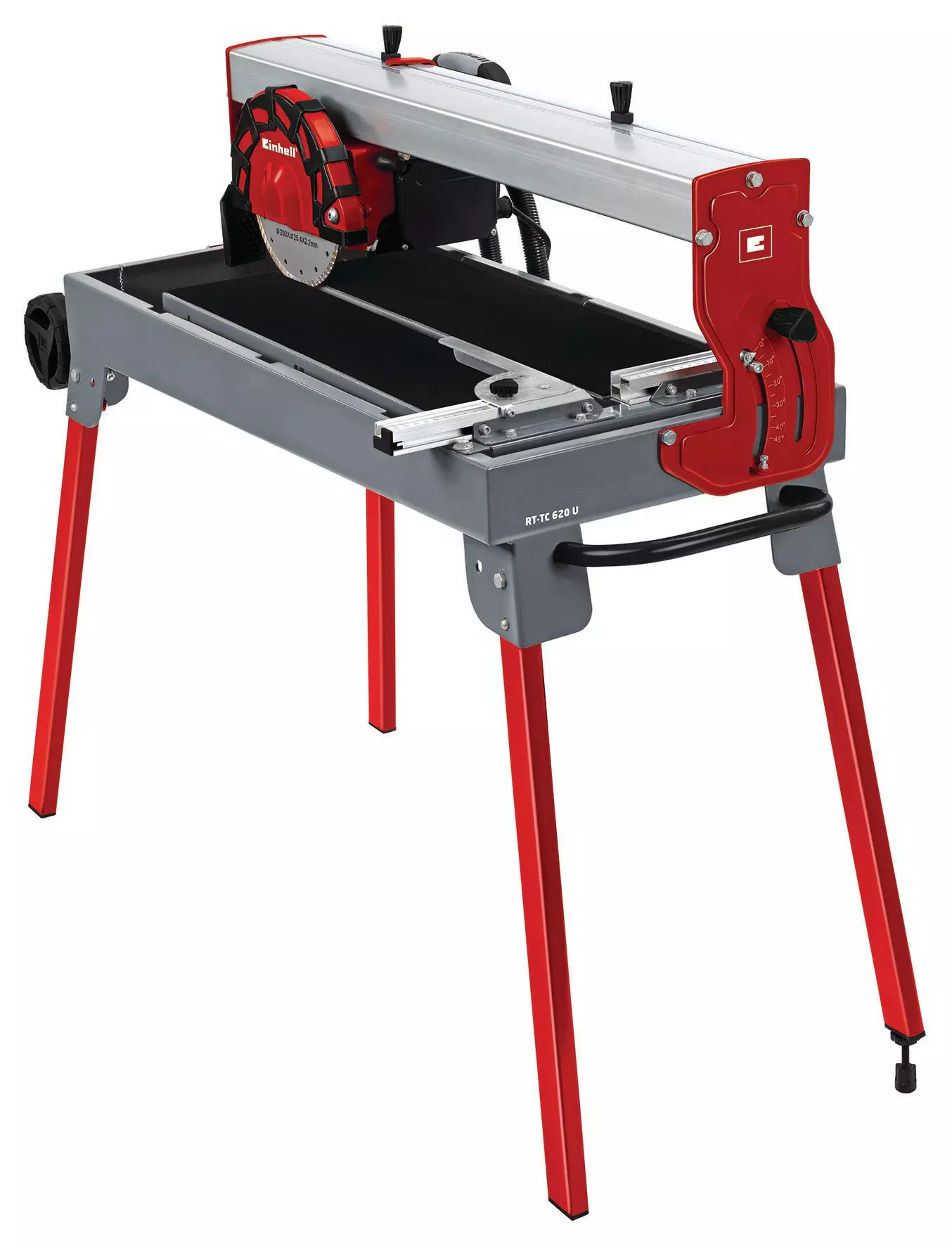

Radial Tile Cutting Machine

TE-TC 620 U; EX; BR; 127

Item no.:4301293EAN: 4006825588644
  • Extra-long drag length
  • Robust folding base frame
  • Transport wheels and transport handle
  • Height-adjustable foot
  • Large work table with non-slip rubber support
  • Solid water collection tank made of sheet steel
  • Robust, aluminium angle stop adjustable to the degree
  • Motor guide with 6-fold ball bearing
  • Infinitely swiveling motor head from 0° - 45°
  • Turbo diamond cutting wheel
See more information
einhell-expert-radial-tile-cutting-machine-4301293-productimage-101
Article description

RT-TC 620 U Tile cutting machine For precise, speedy cutting the RT-TC 620 U comes with a motor head which can be infinitely swiveled from 0° to 45° and has a motor guide with 6-fold ball bearing. Miter cuts, double miter cuts and longitudinal cuts can be performed with just a few moves thanks to an aluminium angle stop which can be adjusted exactly to the degree. A coolant pump ensures not only optimum cooling of the diamond wheel but also dustfree operation. It has a magnet which filters fine metal particles out of the water in order to protect the pump. In the solid water collection tank made of sheet steel there is also a dirt trap with washable filter mats for keeping coarse particles out of the pump. The large work table with non-slip rubber surface rests on a robust, folding base frame with height-adjustable foot and enables ergonomic, safe operation. Moving the machine is no problem thanks to the transport wheels and transport handle. The RT-TC 620 U radial tile cutting machine is a reliable, high-quality and powerful machine for cutting wall tiles and floor tiles quickly and exactly to size. Its robust 900 W motor has ample power for driving the 200 mm diameter turbo diamond cutting wheel with ease through even hard-to-cut material. An extra-long drag length of 620 mm enables the user-friendly cutting of even large tiles.

Technical details

Mains supply127 V | 60 Hz
Max. power (S2 | S2time)900 W | 30 min
Idle speed3595 min^-1
Max. cutting height at 45°25 mm
Max. cutting height at 90°30 mm
Max. cutting length62 cm
Diamond cutting disc200 mm x 25.4 mm
IP code54
Size of working table610 mm x 325 mm
