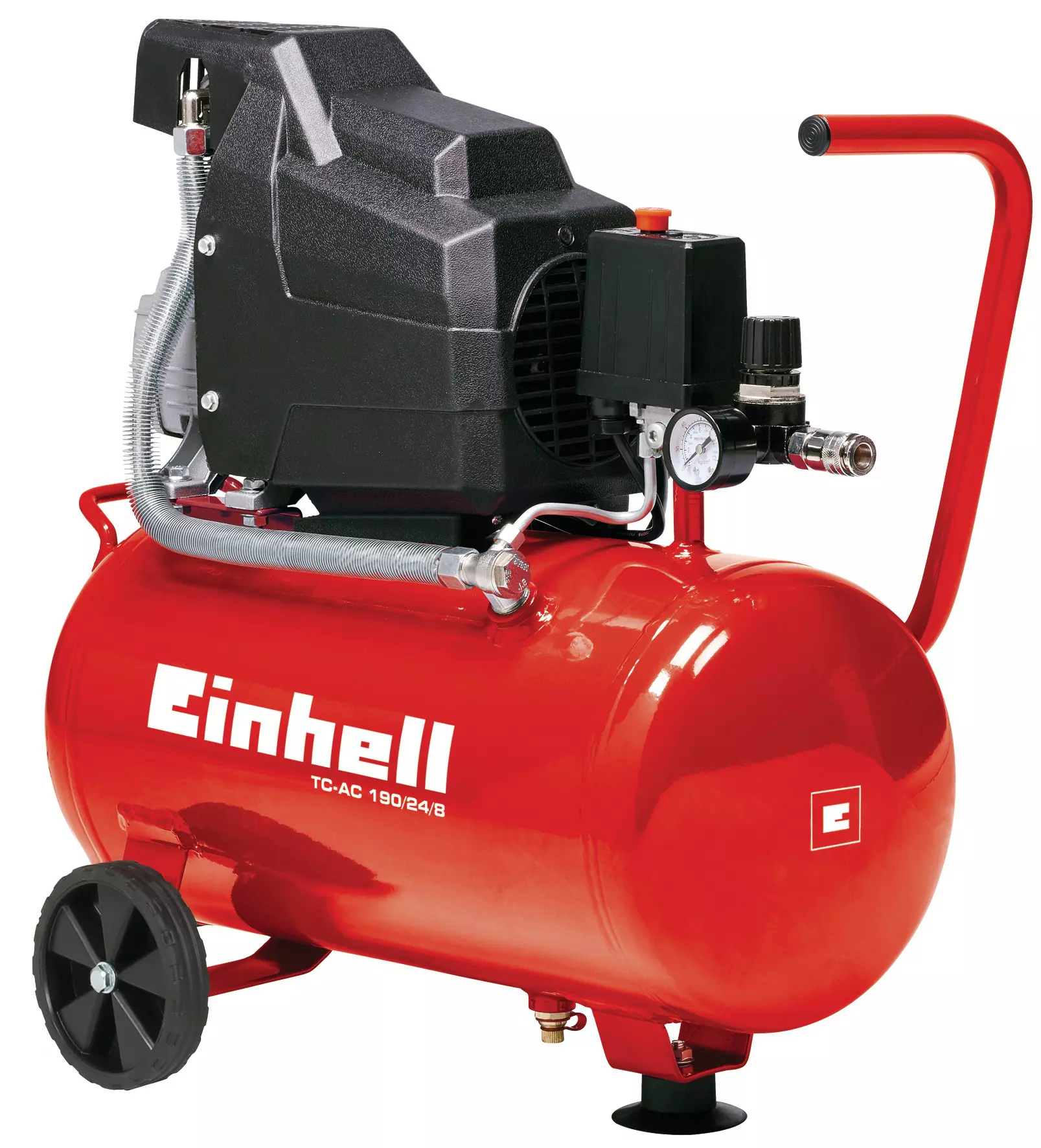

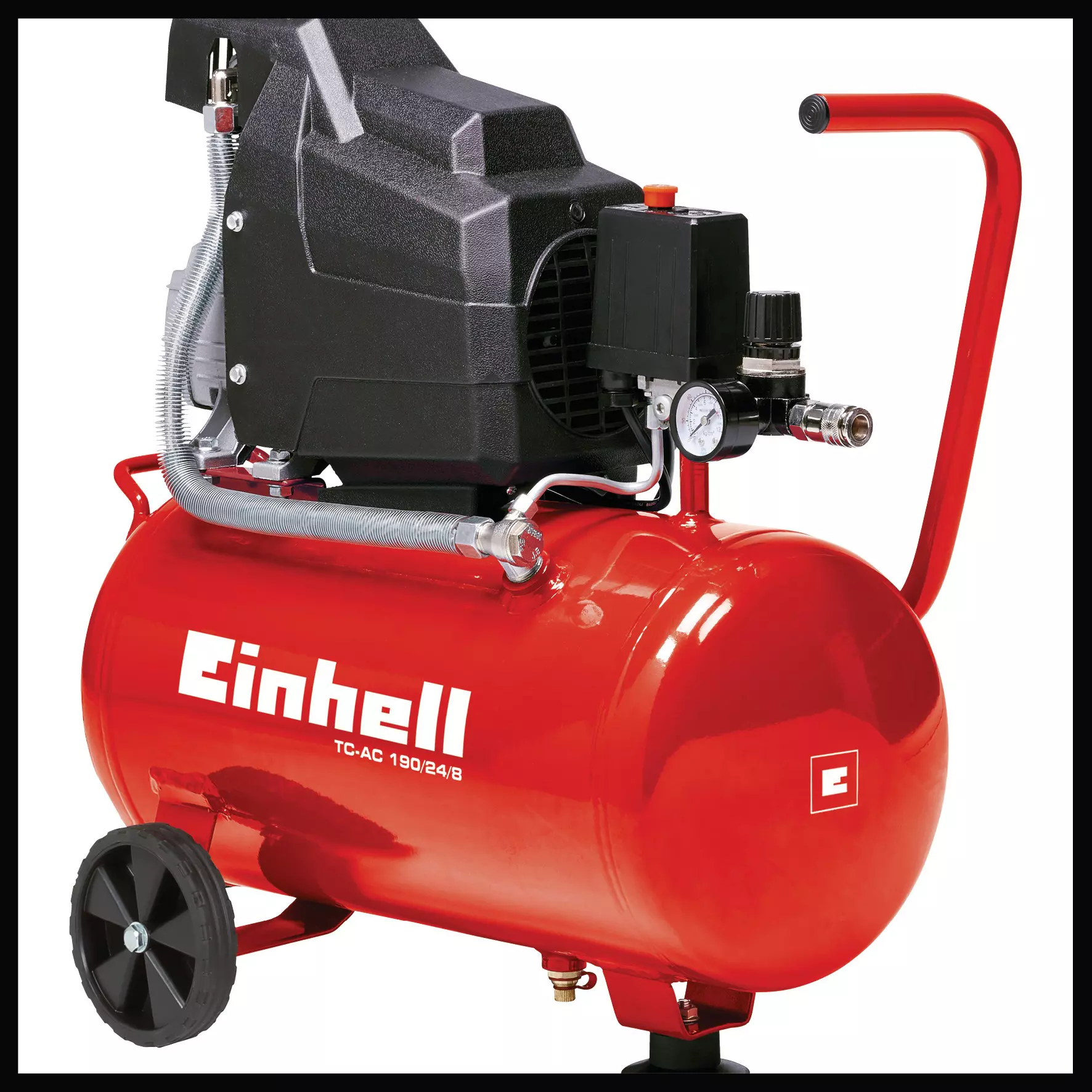

Air Compressor

TC-AC 190/24/8 Ex; Br; 127 V

Item no.:4020551EAN: 4006825618440
  • Oil lubrication ensures a long service life

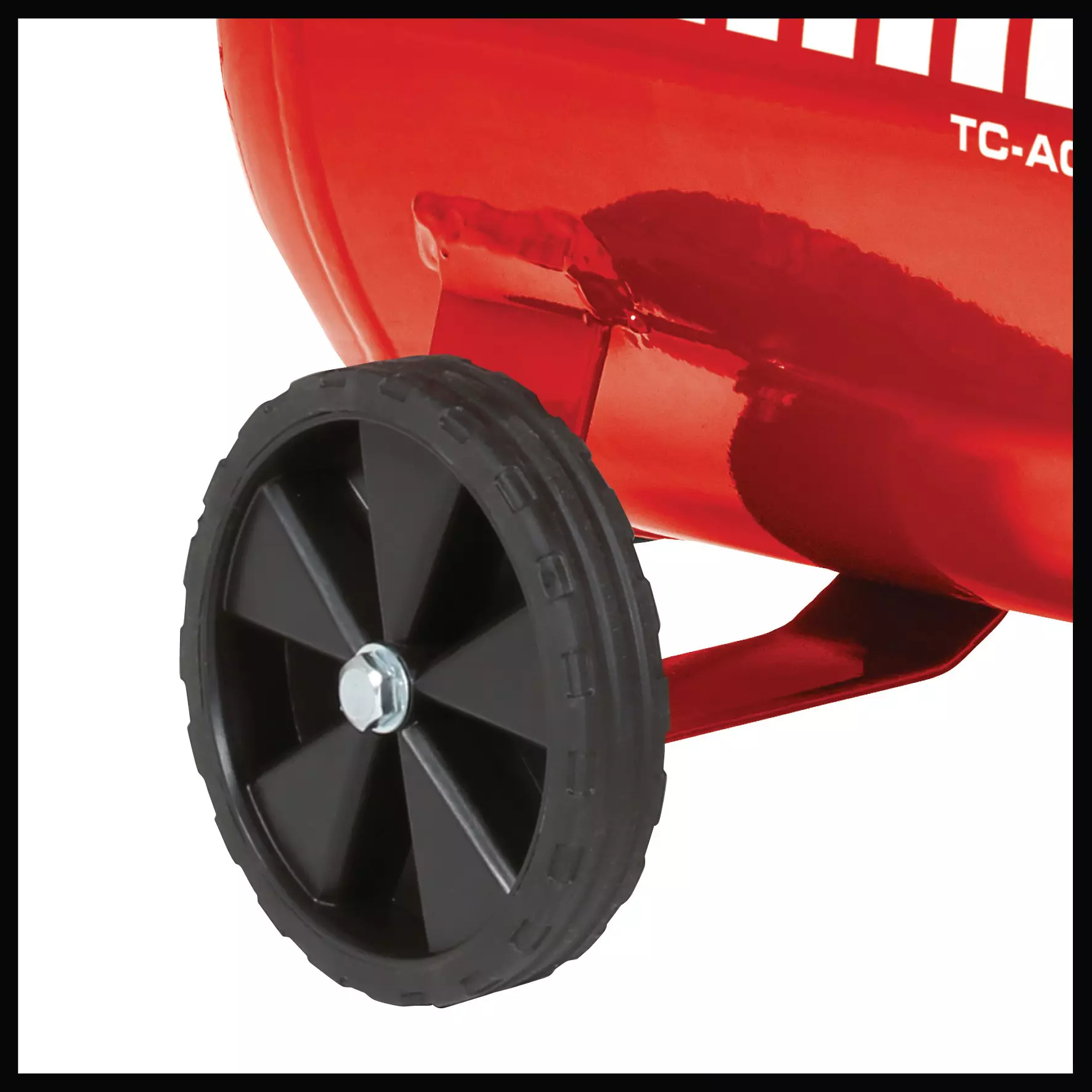

  • Rubber wheels and carrying handle for easy transport

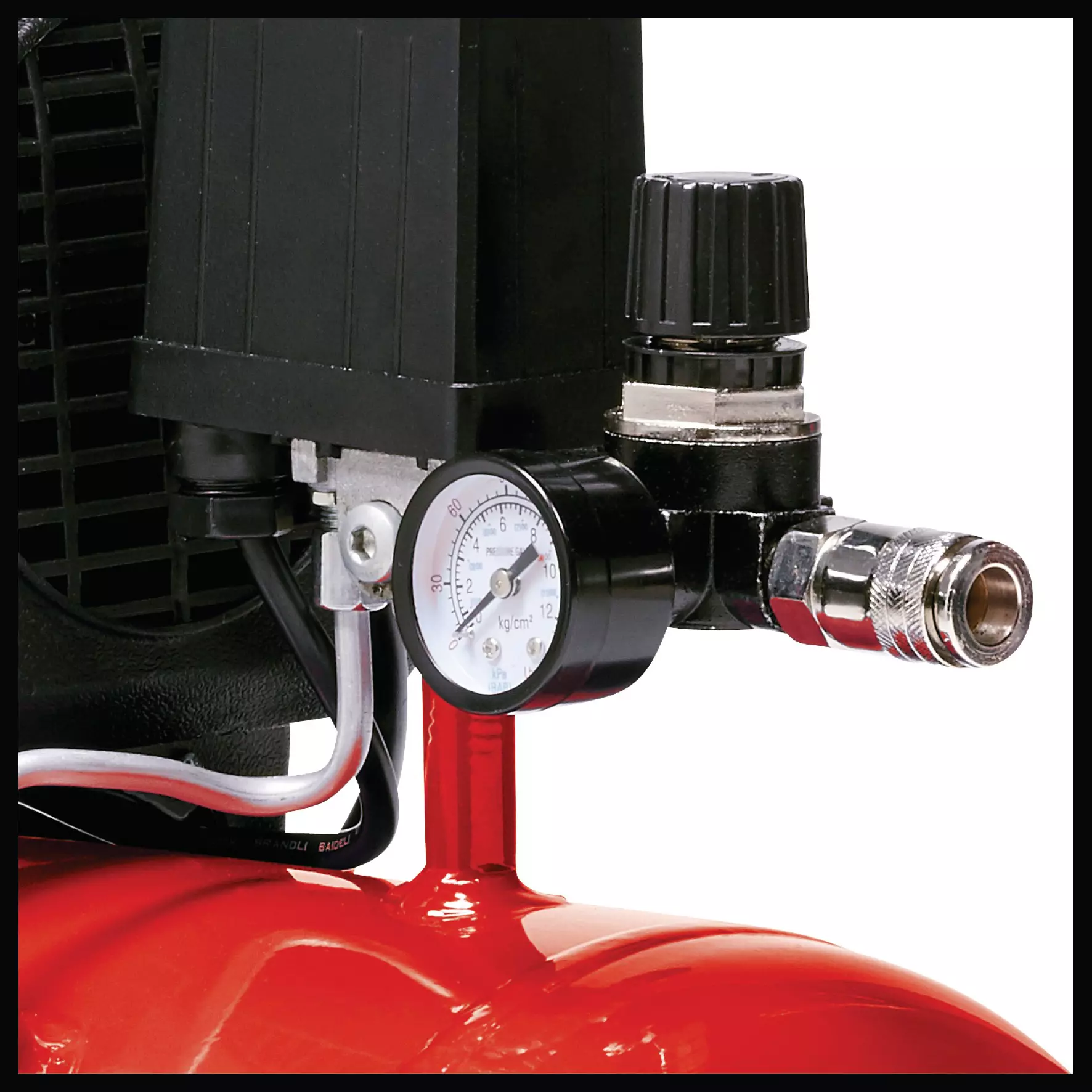

  • Pressure gauge and quick-lock coupling for controlled pressure
  • Pressure reducer for operating pressure adjustment

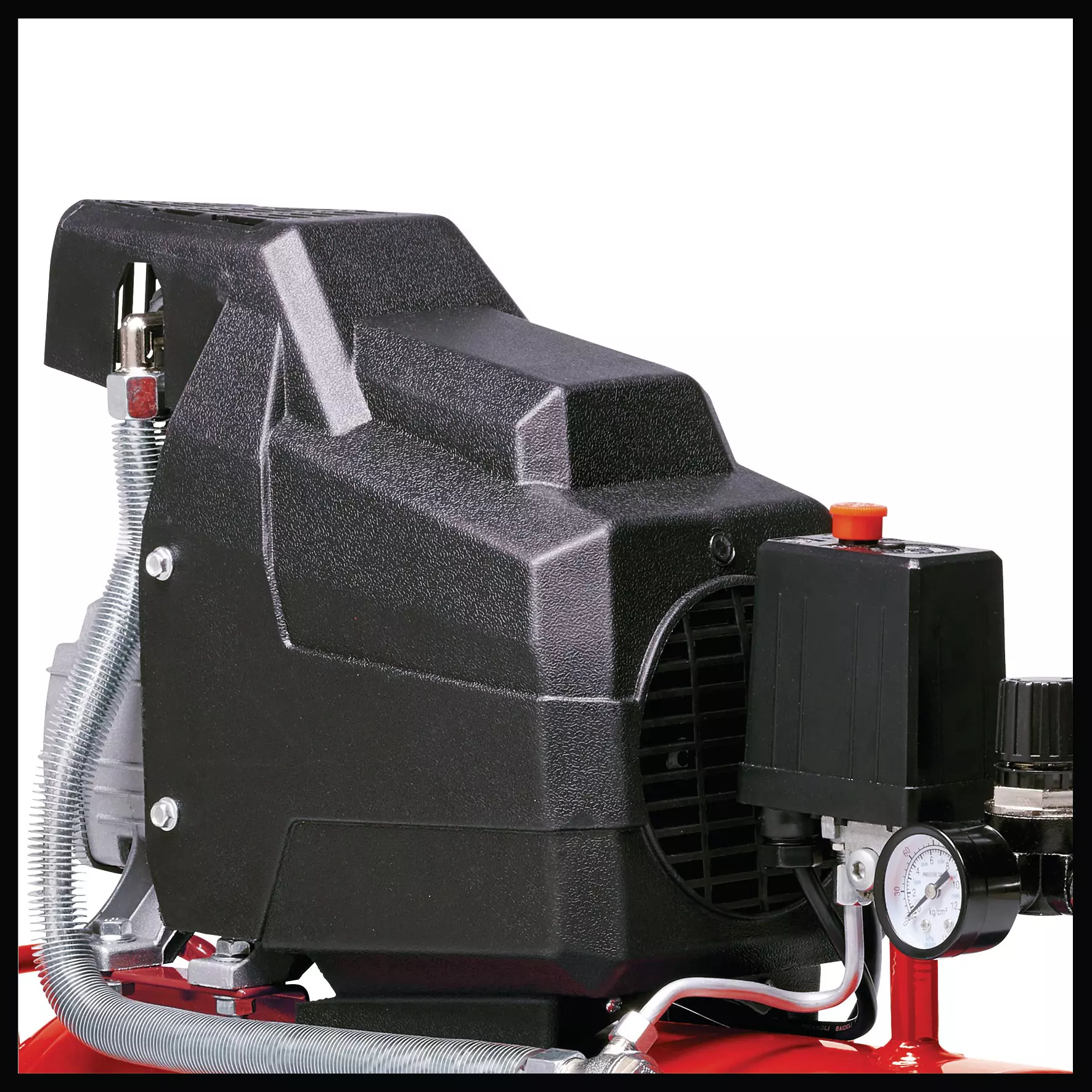

  • Automatic pressure switch, suction filter
  • Non-return valve, safety valve

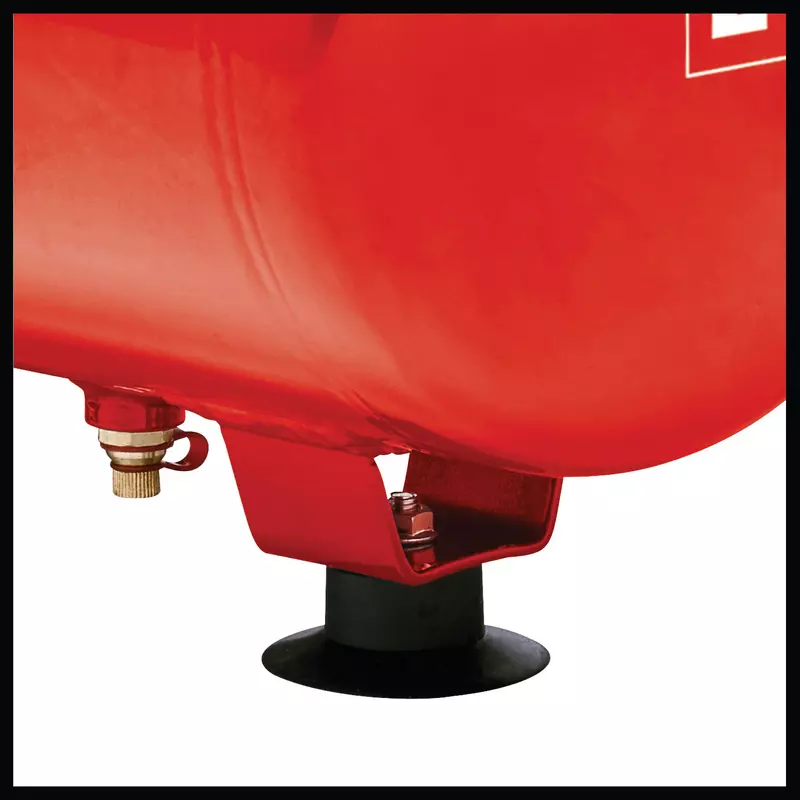

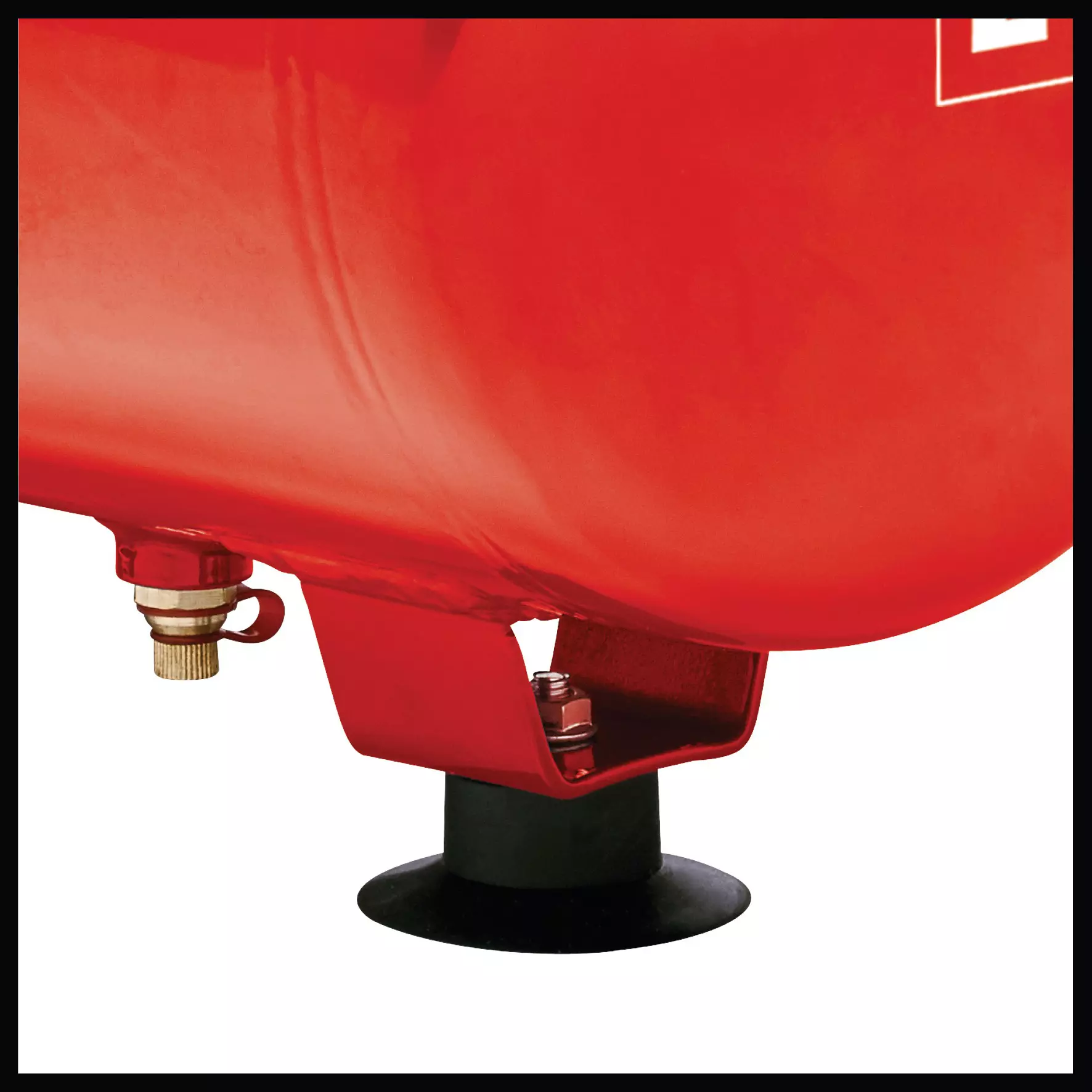

  • Foot with rubber buffer for noise reduction
  • 10-year warranty against rusting through of the tank
See more information
einhell-classic-air-compressor-4020551-productimage-101
Article description

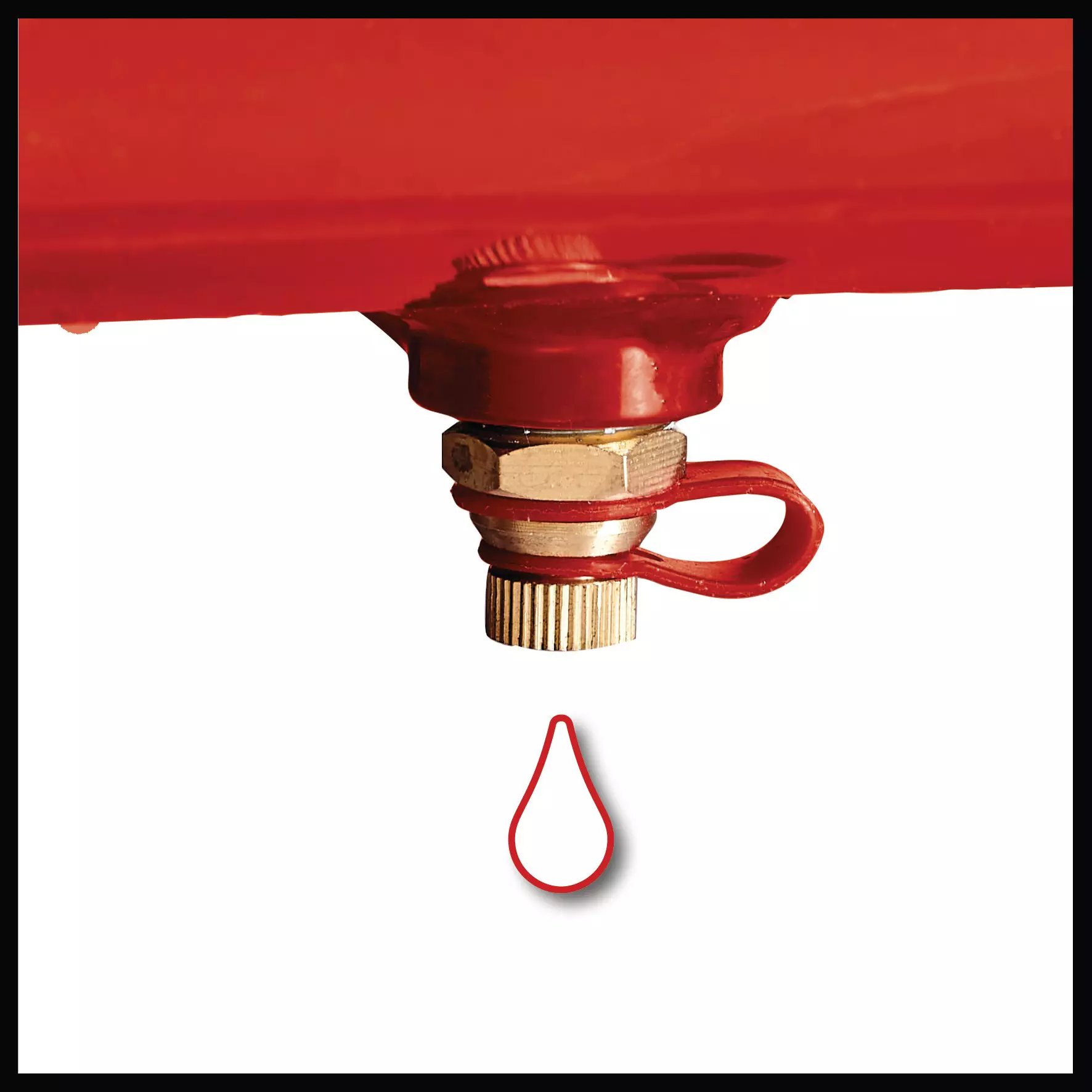

The TC-AC 190/24/8 is a versatile compressor, which is doing a good job at a lot of works with compressed air due to its compact measures and 8 bar working pressure. The regulated working pressure can be set precisely with the pressure reducer, and is displayed on the pressure gauge. Via quick connect, various compressed-air tools can be operated quickly and without tools. The oil lubrication pump saves the durability of the compressor. The suction filter of the air compressor is easy to access and allows simple cleaning. The operator┬┤s safety is optimally provided due to the automatic pressure switch, check- and safety valve. The condensate can be drained off the vessel comfortably and properly per drip cock. The vibration-absorbing foot avoids vibrations and reduces noise. The transport handle and two rubberized wheels care for quick mobility and simple transport. There is a 10- years warranty against rusting through of the solid construction vessel.

Technical details

Mains supply127 V | 60 Hz
Max. engine power1100 W
Max. engine power (S2 | S2time)1500 W 15 min
Motor speed3450 min^-1
Suction capacity200 L/min
Output power at 0 bar115 L/min
Output power at 4 bar85 L/min
Output power at 7 bar65 L/min
Max. operating pressure8 bar
Tank volume24 L
Number of cylinders1 Pieces
